Lane Rope
Product Code: SW-1
Category: Professional Swimming Pool Equipment

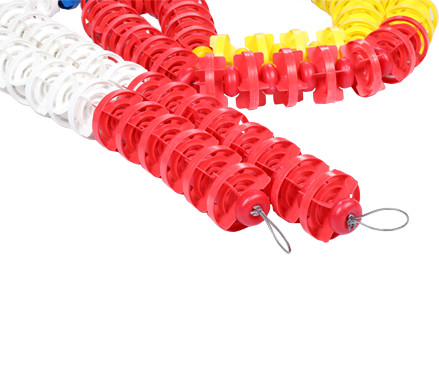

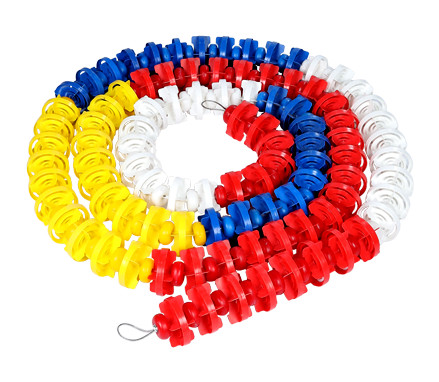

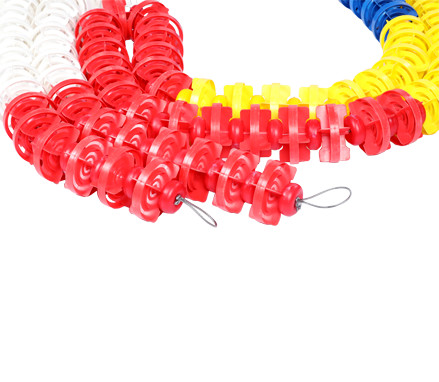

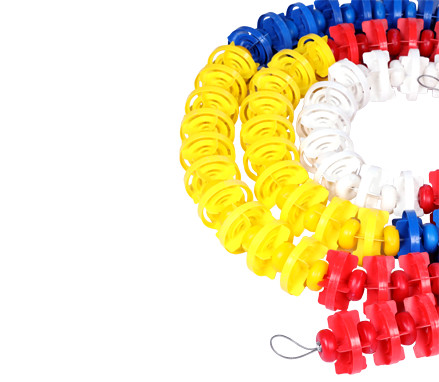

Competition swim lane line. Each metre carries 10 floaters and 10 donut floaters on a nylon or stainless-steel cable, with all fittings in AISI 304 stainless. The floaters absorb the wave from the neighbouring lane so swimmers are not slowed by the wash, and the alternating colours mark the 5 m and 15 m zones when assembled to the standard pattern. Sold by length to match the pool — 25 m or 50 m plus the tensioning allowance — and hung between anchor cups with a front line stabilizer and tension spring at the ends. Store on a lane roller when not in use.
Specifications
| Material | AISI 304 stainless steel |
|---|
| Standard | Competition swimming pool regulations |
|---|
Volume: 0.3 m³
Availability: Made to order
Frequently asked questions
What are the lane ropes and fittings made of?
AISI 304 stainless steel, manufactured to competition swimming pool regulations. The set comprises the lane rope, anchor cups (ACC-1 and ACL-1), the wire lock (SH-1) and tensioning spring (SS-1), and the float lane roller (LR-1) for storing ropes off the water.
How are the anchor cups fixed?
They are cast into the pool wall at each lane position during construction, flush with the finish, so the rope hooks in at water level. Set them out from the lane drawing before the shell is poured — they cannot be moved afterwards.
Does the starting block meet competition rules?
The SB-1-40 starting block is built in AISI 304 stainless steel to competition swimming pool regulations, with an anti-slip platform. Confirm the platform height and pool depth at the start end against the rules of the federation your pool will host.
