Overflow Grating
Model: Cleopatra · Size: H22 x W245 mm · Colour: Navy
Product Code: OFG-3-NAV
Category: Overflow Grating

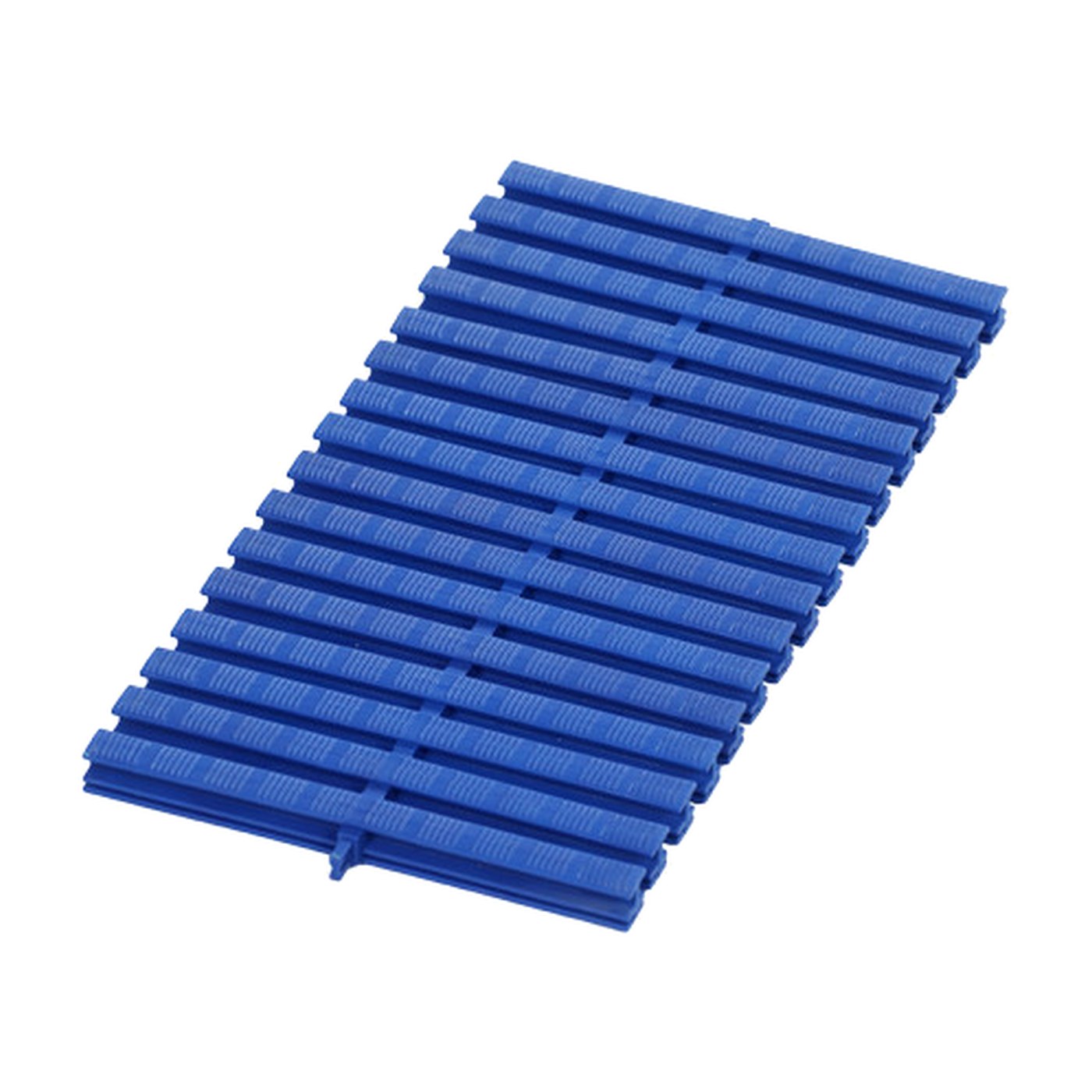

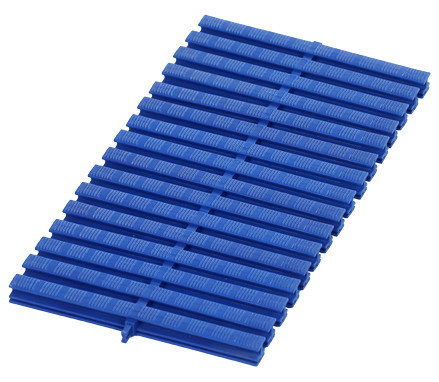

Overflow grating, Cleopatra model — polypropylene single-spine grating, 22 mm high and 245 mm wide, 42 pieces per metre, for the overflow channel of deck-level and infinity pools. The interlocking sections flex to follow straight and curved channel edges, the slotted top lets the surface water fall through into the gutter while giving bathers a non-slip walking surface, and the UV-stabilised polypropylene keeps its colour in full sun. Available in White, Blue, Yellow, Navy and Off-White. Order 42 pieces per linear metre of channel plus corner pieces.
Specifications
| Profile | Height 22 mm × width 245 mm |
|---|
| Surface | Anti-slip |
|---|
| Coverage | 33 pcs per metre |
|---|
| Material | Polypropylene, single spine, UV protected |
|---|
| Standard | BS EN 13451 |
|---|
| Connection | Single connection — follows any curved pool or spa shape |
|---|
Volume: 0.012 m³
Availability: In stock
Frequently asked questions
Which grating width and height do I need?
Match the grating to the channel mouth: the 240 mm-wide, 23 mm-high profile (BS EN 13451 compliant) covers standard overflow channels, and the 245 mm-wide, 22 mm-high profile is the single-spine alternative. Both are supplied per metre (47 or 42 pieces) and follow any curved pool or spa shape through a single connection.

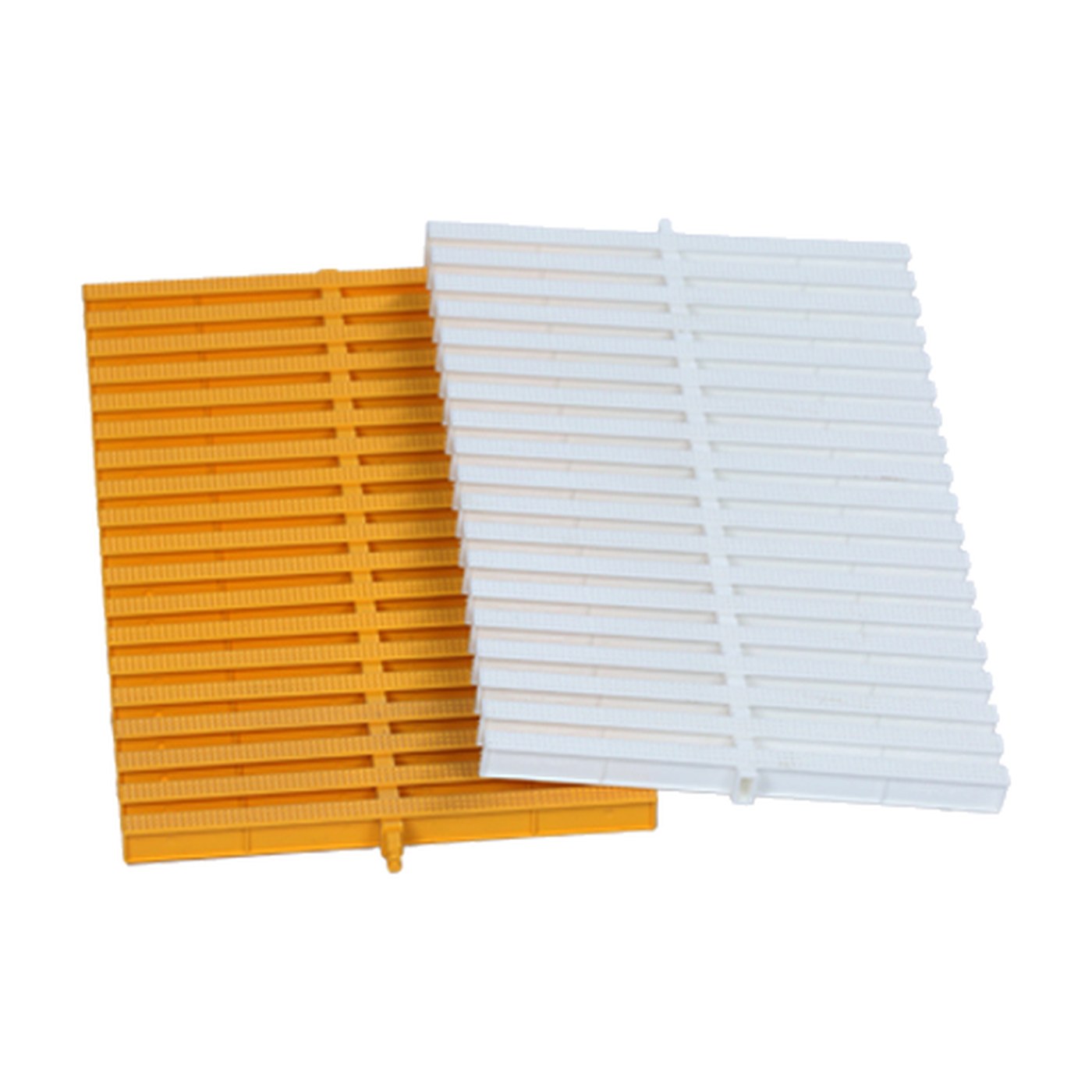

Which colours are available?
White, off-white, blue, yellow and navy, in UV-protected polypropylene with an anti-slip surface. Colour is chosen to match the tile line; it does not change the hydraulic capacity.
How many gutter drains does the channel need?
Space the GD-1 drains (63 mm solvent-weld pipe) along the channel so no run of gutter is more than a few metres from an outlet, and size the pipe runs to the balance tank for the full skimming flow. Our engineers lay out the drains from your pool plan when you request a quotation.
What is the frame-and-grate floor drain for?
The FG-1 (9 × 9 inch) and FG-2 heavy-duty ABS floor drains serve as main drain covers in concrete pools and as floor outlets in balance tanks, plant rooms and deck areas. The frame is cast into the concrete and the grate drops in flush, so it lifts out for cleaning without tools.
