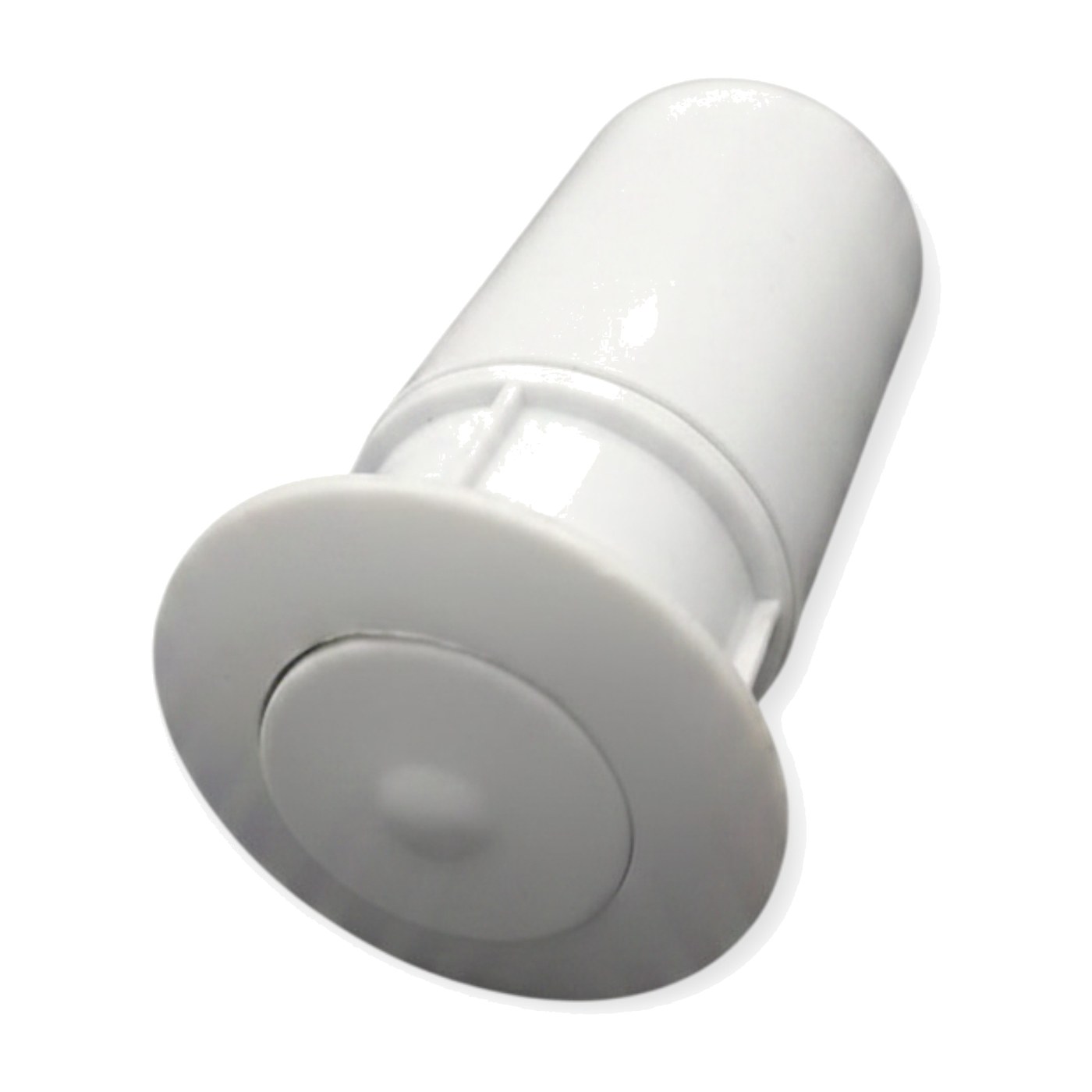

Air Push Button
Product Code: APB-1
Category: Spa Fittings
Pneumatic air push button for spa and jacuzzi pools — switches the air blower (or a pump) on and off from the spa edge without any electrical contact near the water. Pressing the button sends a pulse of air down a small-bore tube to a pneumatic switch in the plant room, which is what makes it safe for wet hands. Mount it in the spa surround within reach of the seats, keep the air tube under 15 m and free of kinks, and pair it with the Waterstar air controller to set the bubble intensity.
Specifications
| Material | ABS treated against pool chemicals and UV |
|---|
| Supplied with | Body, gaskets, plastic nut and screws |
|---|
Volume: 0.0011 m³
Availability: Made to order
Buy this product online at shop.waterstarpools.com
Frequently asked questions
How does the water/air jet mixer work?
Pressurised water from the spa pump passes through the venturi in the WAJ mixer, draws air in from the air line and delivers the aerated stream to the jet nozzle for the hydro-massage effect. One mixer is cast into the spa wall behind each jet position, solvent-welded to 1.5 inch pipe.
What does the air controller do?
The AC air controller sits on the deck at the head of the air line and lets the bather set how much air the venturis draw — from a soft stream to a strong bubbling massage — without touching the pump. The APB-1 air push button switches the spa pump on and off pneumatically, so there is no electrical switch near the water.
How are the jet nozzles adjusted?
The JN-1 directional flow ball fits inside the 1.5 inch pipe and turns to aim the aerated stream at the bather's back, shoulders or feet, so each seat can be tuned after the spa is filled. Screw the nozzles in after the tile finish is complete and set all nozzles on one pump to similar angles so the jets deliver evenly.
